Are you ready to try out a new (old) way to have fun getting lost on your motorcycle?
Get ready to go places you have never been before. And experience places you have already been in a whole new way. Navigating by rally roadbook is not complicated and does not require expensive equipment. All you need is a GPS enabled smart phone or tablet along with the TerraPirata Rally Roadbooks app and you are set. Following a roadbook is the perfect way to get out on your bike and ride a cool route with your buddies. You can all start from the same location and gap out by a minute or two then ride off and meet up at one of the waypoints. Once you get there you can share stories about where you went the wrong way and then figured it out and got back on track. The best part of it is no dust since no one has to wait at intersections and everyone is able to follow the route at their own pace.
How do I follow a roadbook??
Our Roadbooks
We have many Roadbook Tours available now. Start out with one of the Rookie Roadbooks. Then if you are looking for a bigger navigation challenge, you can pick up one of our Roadbook Collections or get roadbooks from one of our partners like the GripTwister Olympic Loop. Look for our booth at your favorite event. We will be at several with roadbooks for you to ride. Check our Events Page.
More Roadbook Tours are coming. We are always working on writing new Roadbooks Tours and getting them tested out and ready for you to enjoy.
Watch here for more info. Better yet, sign up for our mailing list to stay informed. Follow us on Facebook and Instagram.
Featured Products

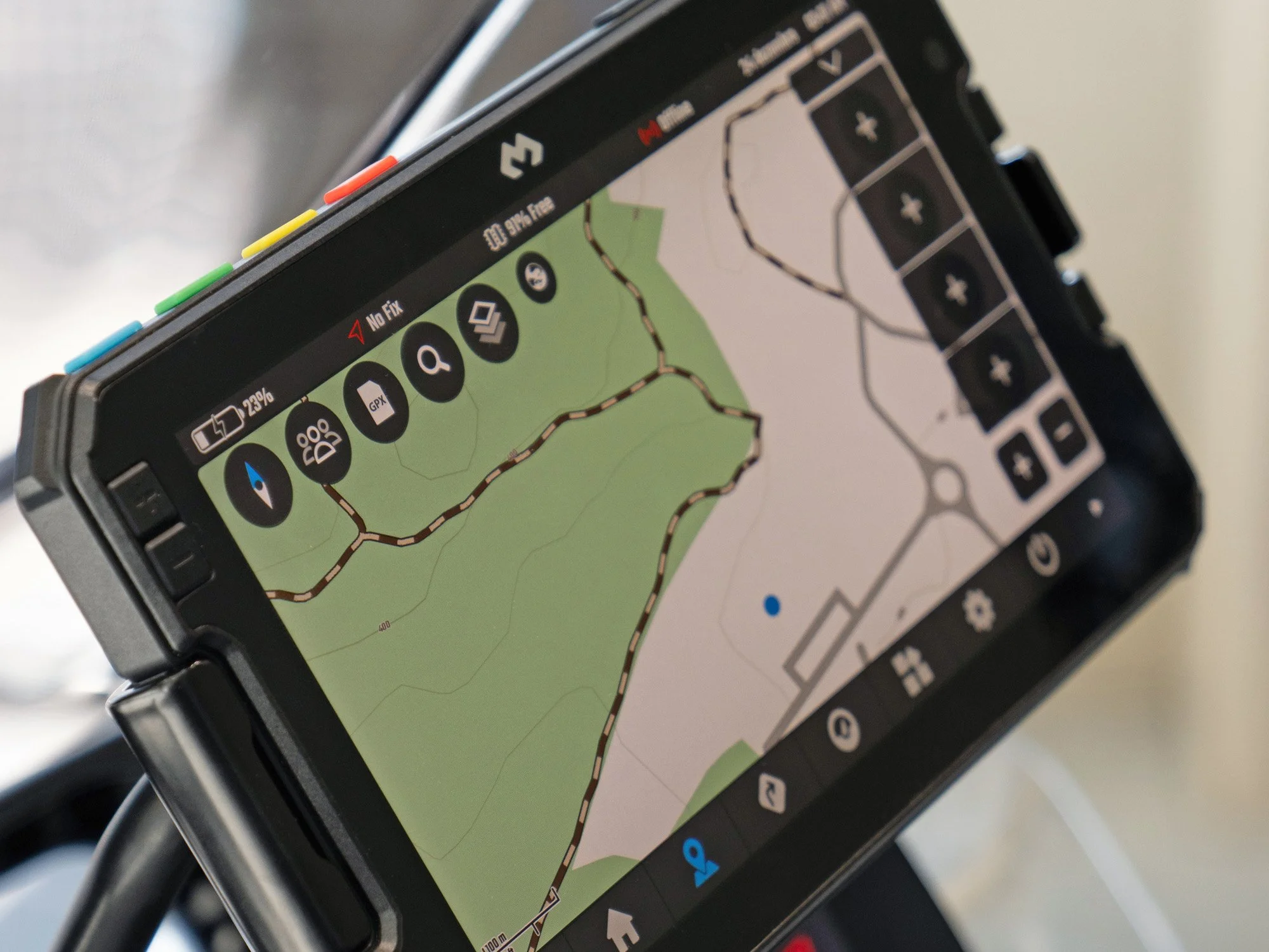

DMD Nor7e 7” Navigation Tablet
The Nor7e units are finally coming!! We have a shipment coming in within a few weeks. Expect Outgoing Shipments mid-April.
The ultimate navigation tablet is here, the DMD Nor7e! This 7″ rugged device, powered by Android with Play Store, is built for navigation! It is designed from the ground up for ADV and group riding, combining flagship T880X performance with LoRa enabled offline communication and expanded accessory connectivity. The LoRa system allows your Nor7e to communicate your location with your riding buddy’s Nor7e without the need for a cellular or WiFi connection. You and your fellow rider will be able to see your locations on the map on each of your devices!
Specifications:
Battery - 2500 mAh
CPU - Octa Core ARMv8.2-A (8 Cores) / Dimensity 6100+ MT6835 / ARM Mali-G57 GPU (2 Cores) / 6 Cores @1.80 GHz + 2 Cores @ 2.00 GHz
RAM - 8GB LPDDR4X
Storage - 128 GB UFS2.2 + Supports SD Card
OS Version - Android 14 with Play Store
Slots - 2x Nano-SIM / 1x SD Card
Screen - 7” Thick Glass High Clarity LCD / 2200 nit Sustained Brightness / 1920 × 1080 24 bit True Color LTPS
Ports - USB Type-C / M9 Screw Type Rear Connector for Power and Data / M9 Screw Type Rear Connector for Accessories / SMA Antenna for LoRa Wireless (Basic Antenna Included)
Network - WiFi 5GHz - Up to 500 MB/s
Cellular - 5G / 4G / 3G / 2G
Bluetooth - BT 5.2
Internal Sensors - Accelerometer / E-Compass / Gyroscope / Barometric / Ambient Temperature
GPS Chip - Sub 1 meter Precision / GNASS / GLONASS / GALILEO / A-GPS / Dual-band L1+L5
Chassis / IP Rating - IP67 / MIL STD 810G / Waterproof USB Port / Waterproof M9 Connector / Polycarbonate GF 10% / Max Operating Temperature - 60C / Shutdown at 78C Air Temperature
Weight & Size - 490g / 190mm L x 110mm W x 17mm D
Screen Sensor & LEDs - Front Light & Proximity Sensor / Warning LED / Charging Indicator
Warranty - 2 Year Warranty / Lifetime Support with Remote Assistance
Buttons - Power Button / Volume Buttons / 4 User Configurable Buttons / Front Facing Zoom Buttons / Front Facing Screen Touch Toggle Button
Additional Info - Expansion Modules over Screw Type Connector / LoRa Wireless Module and Basic Antenna Included
In the box:
DMD-Nor7e 7” Tablet
Motorcycle holder
Charging system and remote controller connection using a screw type M9 connector cable.
Features:
Includes the DMD2 Drive Mode Dashboard app fully unlocked, LoRa wireless system for group ride, warning front-facing RGB LED, front facing zoom buttons and touch enable/disable button + 4 user configurable colored buttons.
High GPS Precision with dual frequency, internally 12V-24V circuit (no need for external power supplies), M9 screw type charging and wired remote controller + extra expansion M9 connector for virtually any future cable or accessory type.
Auto Turn On on power detection and configurable auto shutdown.
Regular OTA updates. Same core hardware as the DMD T880X with a powerful CPU, 8GB RAM, 128GB internal storage, dual-band GPS, 5G cellular support, dual SIM plus eSIM capability and an SDcard slot for expanded storage.
Integrated LoRa technology with SMA antenna connector and included antenna allows offline location sharing and group ride tracking without cellular coverage.
Advanced Control & Inputs: Front-facing physical buttons for zoom and screen touch toggle, plus four top-mounted user-configurable buttons for custom functions while riding.
Expanded M9 Accessory Support: Waterproof M9 power connector with remote controller support, plus a dedicated M9 accessories port capable of CAN, OBD, controllers, USB data, and custom cable solutions—supporting two USB accessories simultaneously.
Rider-Optimized Display & Sensors: 7" 1920×1080 LTPS display rated at 2200 nits with polarized filter, hard coating, and thick glass for excellent visibility; includes barometric pressure and temperature sensors for environmental data.
Additional Details:
No pogo pins
No cameras
Battery life up to approximately 3 hours
Includes metal mounting holder with AMPS & integrated vibration dampening
Dimensions & Weight:
Device size: approx. 7.5 in × 4.3 in
Device thickness: approx. 0.5 in
Full assembly depth (device + holder): approx. 1.6 in
Device weight: under 1.1 lb
Device + holder weight: approx. 1.3 lb
Resources:

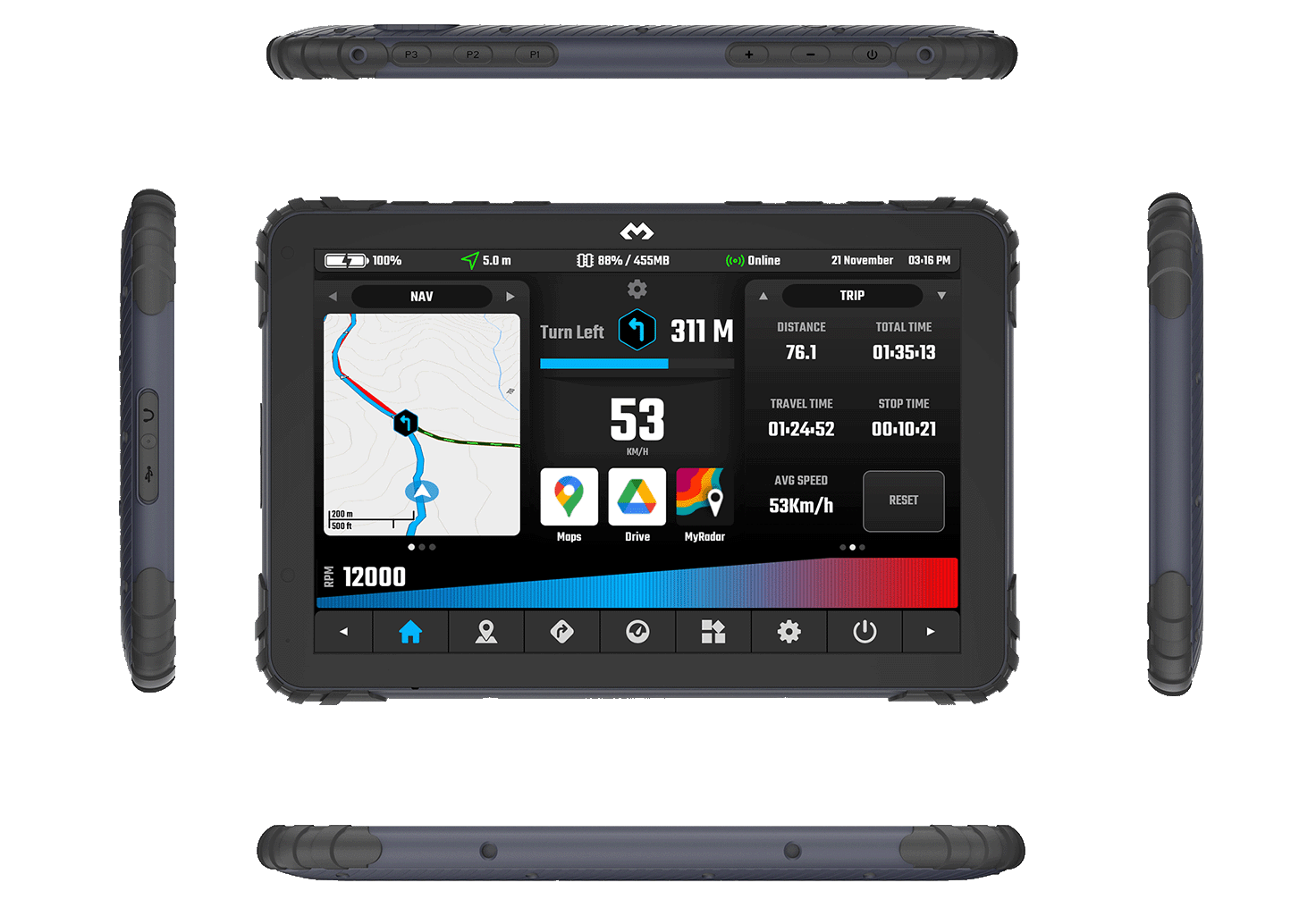

DMD T865X 8” Navigation Tablet
The T865X is an 8" Android 14 navigation tablet designed and developed by the DMD Team.
Some of its highlights include a huge 8000mA battery, high precision GPS, IP67 rating, capable of handling temperatures up to 60C without discharging the battery, 2x SIM Card, both M9 connector and pins for power and wired remote controller.
The T865X model includes 128GB Storage and a 1300 nit LCD screen with thick high clarity glass.
All DMD devices include the DMD2 Drive Mode Dashboard app, and a series of original system apps like the SOS app, Auto Off Manager and Buttons.
Included in the box:
DMD T865X Tablet
DMD T865 Motorcycle Off-Road Holder (Cradle)
DMD T865 Wiring Harness
T15 screwdriver (for accessing the SIM & microSD slots)
Not included (purchase separately):
Bluetooth Remote Controller
AMPS Compatible vehicle mount - You will need to either provide your own, or purchase additionally an AMPS compatible mount.
microSD card - Add your own SD card to expand your storage.
Cellular SIM - No SIM is included with this device.
Anti-Glare Screen Protector - is available separately
A full navigation kit, ready for your motorcycle!
Are you looking for an Android 8″ tablet for navigation that was made specifically for being attached to your motorcycle?
Here it is!
This IP67 device is optimized for navigation and was developed to be easily attached to your motorcycle, have a high precision GPS, be light and be good looking.
It is has many features including Android 14 with regular OTA updates, an Octa-Core CPU, 128GB of internal storage plus removable storage available for DMD2 maps and user files, and a new custom, high brightness, LCD panel optimized for navigation.
Includes DMD2 pre-installed with life-time license, certified and optimized!
Many motorcycle quality of life features like configurable auto turn-off, ignition detection, gloves mode and three buttons that are configurable for many functions inside the DMD2 Drive Mode Dashboard app.
Pair this tablet with one of the DMD Bluetooth Remote controllers for the ultimate navigation solution for your bike or 4 wheeled vehicle!
Specifications:
8000 mAh battery
Octa-Core CPU
128 GB Internal Storage
Supports SD card for additional storage
Android 14 with Play Store
8” Thick Glass screen
1300 nit sustained brightness
1200 × 800 pixel
USB Type-C
Headphone jack
M9 Screw Type Rear Connector for Power and Data
Wifi - 5GHz
LTE - 4G - Slots for 2 Nano-SIM cards
Bluetooth 5
GPS - GNASS, GLONASS, GALILEO, A-GPS
Chassis - IP67
Buttons - Power, Volume & 3 User Configurable Buttons
Camera - Rear 16MP Autofocus / Front Light & Proximity Sensor
Warranty - 2 Year
External GPS Antenna Port
Resources:
DMD T865X Manufacturer Product Page

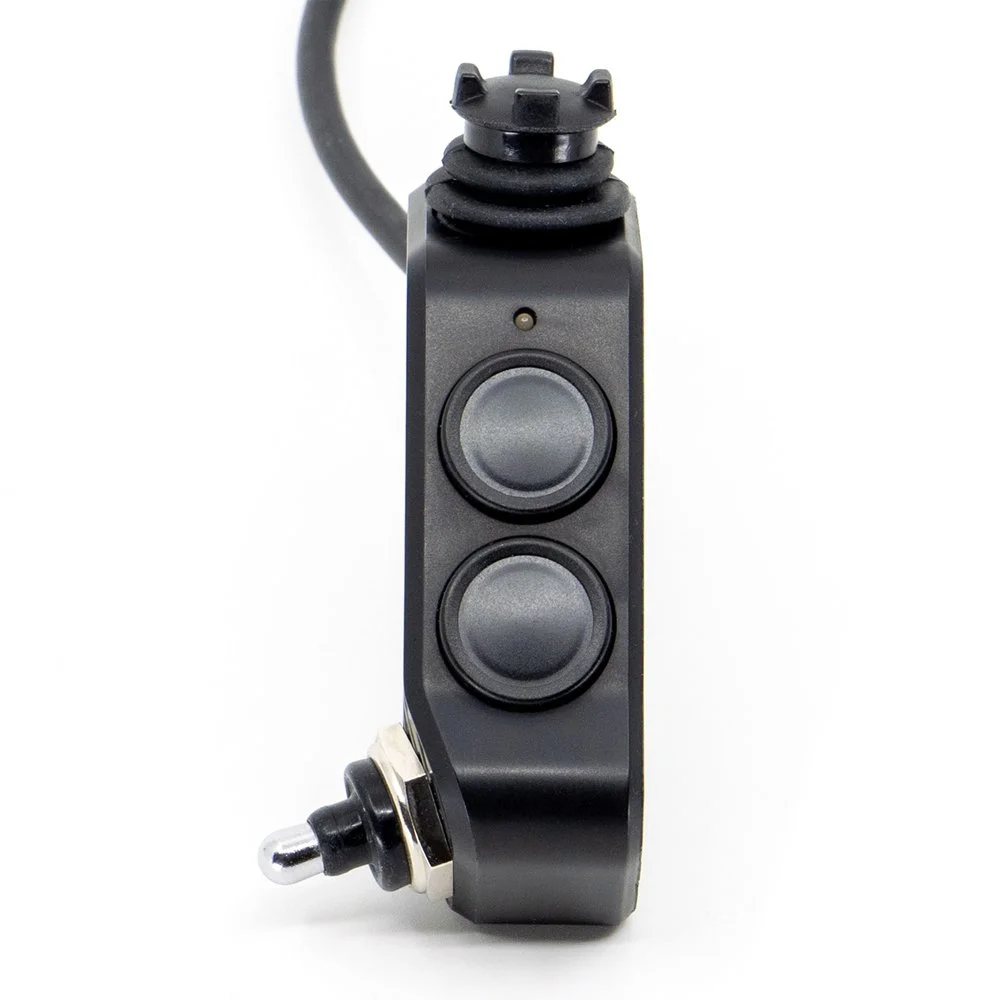

DMD Remote 2 Handlebar Remote with Bluetooth
Your main connection to your navigation setup
We assure you that once you navigate with the DMD Remote 2 with Bluetooth, you will never want to go back to riding without it again. This remote controller really takes your setup to the next level!
Accessing the most crucial navigation functions while riding is a game changer. It allows you to quickly zoom in and out, pan the map to search for alternative paths, toggle follow modes or control the GPX recorder. All without taking your hands off the bars. The DMD2 Drive Mode Dashboard app was made from the ground to be used with remote controllers, and you will feel it.
The DMD Remote 2 Handlebar Remote will work with your phone or tablet even if it is not a DMD device!
The DMD Remote 2 is able to connect to your DMD tablet by cable and/or by Bluetooth. And by using the Bluetooth connection, you can connect it to just about any other phone or tablet. That’s right! You can use this remote to control your current phone or tablet setup thru the Bluetooth connection. And it works on many of your favorite navigation apps.
The DMD Remote 2 works great for following our Roadbook Tours with the TerraPirata Rally Roadbooks app. You are able to setup the button and switch assignments inside of the TerraPirata Rally Roadbooks app just like in DMD2. You will love having the thumb switch to scroll your roadbook forward and back along with the buttons to adjust your tripmeter if you need to.
Designed to fit most motorcycles right next to the grip, standing at 2cm wide and 2cm tall, it will be easy to reach with your thumb while your hands are on the bars. And you can still reach the stock instruments. Each button and switch was placed in just the right spot for you to be able to easily reach it. The joystick allows full 360 degree map panning! It is the most accurate and precise remote for the DMD2 Drive Mode Dashboard app.
Features:
Nice and thin - at only 20mm wide.
Ergonomic button and switch layout
Full 360 degree map panning
Bluetooth and/or Cable (with DMD tablets) connection
Solid construction
Injected plastic chassis
Designed for rough service use on your motorcycle
Water-proof
Dust-proof buttons
Powered either from 12v DC (for your non-DMD device) or from your DMD Device harness
Can be paired to your device by Bluetooth and/or connected directly by cable (cable connection is compatible with DMD devices).
Use the DMD Manage app to define the function for each of the buttons and switches to meet your needs.
The DMD Remote 2 works great for following our Roadbook Tours with the TerraPirata Rally Roadbooks app too. You are able to setup the button and switch assignments inside of the TerraPirata Rally Roadbooks app just like in DMD2. You will love having the thumb switch to scroll your roadbook forward and back along with the buttons to adjust your tripmeter if you need to.
Since it is able to use Bluetooth, you are able use this remote with just about any phone or tablet.
Compatible to use with most other navigation apps including OSMAnd, LOCUS, Google Maps, Waze, GURU Maps, Gaia, Kurviger, Terra Pirata, etc.
Resources:
DMD Remote 2 Manufacturer Product Page
DMD BMW Sync Box with Bluetooth
Sync your BMW controls with your DMD navigation system.
The DMD BMW Sync Box with Bluetooth is a Can Bus module for BMW motorcycles. It allows you to use the BMW Wonder Wheel to control the DMD2 app (along with other apps) and also to display motorcycle information like TPMS / RPM / Temperature! It can connect to other non-DMD tablets by Bluetooth.
Features:
Control up to 8 functions with the BMW Wonder Wheel and other handlebar controls
Switch easily between control of the BMW TFT and your navigation device
Gather info from your BMW motorcycle sensors like TPMS, Gear and Temperatures.
Communicates over Bluetooth or by using the specific DMD Remote cable connection.
No batteries needed. The device gets power directly from the motorcycle connection. It completely shuts down when the motorcycle is turned off (no motorcycle battery drain).
Control DMD2 and other navigation apps using the BMW factory handlebar controls:
4 inputs are available with Wonder Wheel Up / Down / Left / Right
4 more inputs are available if you press the “Cancel Blinker” button in and hold plus Wonder Wheel Up/ Down / Left / Right
Use the DMD Manage app to map the inputs to the function you desire.
Get sensor data from your BMW motorcycle to display in the DMD2 app. Information you can have displayed in the DMD2 Drive Mode Dashboard app includes:
RPM
Tire Pressure Monitor System info
Engine Temperature
Ambient Temperature
Gear Indicator
Throttle Position
This unit provides both remote controller and OBD functionality for your BMW Motorcycle.
It does not require the Navigation Preparation kit from BMW, it uses direct CAN-BUS connection and can be used with any other CAN-BUS accessories. The provided interface cables are all splitter type designs.
The BMW Sync Box with Bluetooth can be connected to DMD devices by cable (just like the other DMD remotes). If you do not own a DMD device, you can connect to your tablet to the BMW Sync Box by Bluetooth!
Refer to the BMW Sync Box Manual linked below to verify compatibility with your BMW motorcycle.
